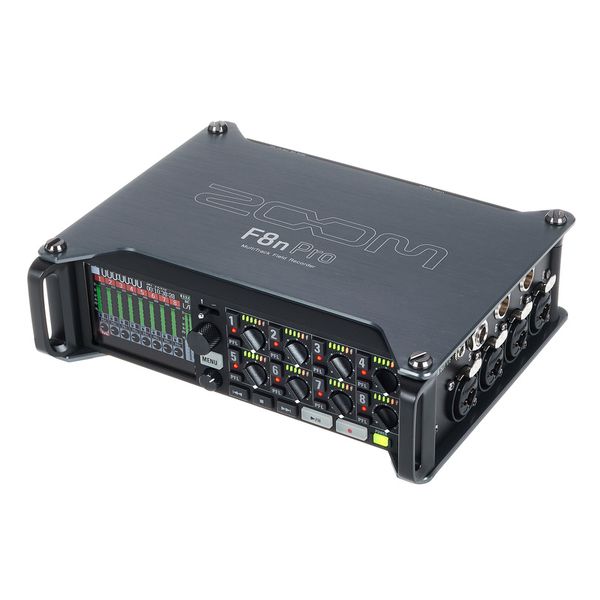

Zoom F8n Pro 32-bit MultiTrack Field Recorder

F8n Bag & Orca Harness
2x SD Cards
Cabling and Power

32-bit float recording technology
8-channel/10-track field audio recorder/mixer
Records in BWF-compliant WAV format up to 192kHz/32-bit float
8 discrete inputs with locking Neutrik XLR/TRS combo connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options for both XLR and TRS
Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
Zoom AutoMix software
Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
High pass filter, phase invert, and mid-side decoder
Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
Dedicated headphone output (100 mW) with front panel volume control
2.4" full-color backlit LCD with monochromatic mode
Dual SD/SDHC/SDXC card slots, up to 1 TB each
Use as an 8-in/4-out USB audio interface
Free Zoom F8 Control App for iOS and Android allows wireless remote control,
file renaming, and metadata entry

OUTPUTS
MAIN OUT 1/2
Connectors	TA3 connectors (balanced output, 2: hot)
Output impedance	150 Ω or less
Reference output level	−10 dBV (normal output level) +4 dBu (line output level) 1 kHz, 600 Ω load
Maximum output level	+10 dBV (normal output level) +24 dBu (line output level) 1 kHz, 600 Ω load
SUB OUT 1/2
Connectors	3.5 mm stereo mini (unbalanced output)
Output impedance	100 Ω or less
Reference output level	−10 dBV (normal output level) −40 dBu (mic output level) 1 kHz, 10 kΩ load
Maximum output level	+10 dBV (normal output level)
HEADPHONE
Connector	1/4 inch stereo (unbalanced output)
Output impedance	18 Ω or less
Maximum output level	100 mW + 100 mW (32 Ω load)
D/A DYNAMIC RANGE	105 dB typ. (−60dBFS input, A-weighted)
RECORDING FORMATS
WHEN WAV SELECTED
Supported formats	44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz 16-bit linear, 24-bit linear and 32-bit float Mono/stereo/2-10 ch poly BWF and iXML
Maximum simultaneous recording tracks	10 (8 inputs + stereo mix) 8 (at 192 kHz sampling rate)
WHEN MP3 SELECTED
Supported formats	128, 192 and 320 kbps 44.1 and 48 kHz ID3v1 tags
Maximum simultaneous recording tracks	2
RECORDING TIME
Using a 32GB card	23:08:00 (48 kHz/32-bit float stereo WAV) 5:47:00 (192 kHz/32-bit float stereo WAV)
TIMECODE
Connector	BNC
Modes	Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
Frame rates	23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
Precision	±0.2 ppm
Supported input levels	0.2 - 5.0 Vpp
Input impedance	4.6 kΩ
Output level	3.3 Vpp
Output impedance	50 Ω or less
POWER SUPPLIES
AA batteries	8 (alkaline, nickel-metal hydride or lithium)
AC adapter	ZOOM AD-19, DC 12 V/2 A, center plus
External DC power supply	HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V
ESTIMATED CONTINUOUS RECORDING TIMES
(THESE VALUES ARE ONLY ESTIMATES)	2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF Alkaline batteries- about 6 hours THESE VALUES ARE BASED ON IN-HOUSE TESTING METHODS NiMH batteries (2500 mAh): about 8.5 hours THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS. Lithium batteries- about 12 hours 8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF NiMH batteries (2500 mAh)- about 7 hours Lithium batteries- about 10 hours 8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V Alkaline batteries- about 0.5 hours NiMH batteries (2500 mAh)- about 1.5 hours Lithium batteries- about 2.5 hours
DISPLAY	2.4 inch full-color LCD (320 × 240)
USB
Connector	Mini-B Use a USB cable that supports data transfer. USB bus power operation is not supported
MASS STORAGE OPERATION
Class	USB 2.0 High Speed
MULTI TRACK AUDIO INTERFACE MODE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class	USB 2.0 High Speed
Sampling rate:	44.1/48/88.2/96 kHz
Bit depth	24-bit linear/32-bit float 8-in/4-out
STEREO MIX AUDIO INTERFACE MODE OPERATION (NO DRIVER REQUIRED)
SUPPORTS AUDIO INTERFACE OPERATION WITH IOS/IPADOS DEVICES
Class	USB 2.0 Full Speed
Sampling rate	44.1/48 kHz
Bit depth	16-bit linear 2-in/2-out
AUDIO INTERFACE OPERATION WITH RECORDING
(DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class	USB 2.0 High Speed
Sampling rate	44.1/48 kHz
Bit depth	24-bit linear/32-bit float 10-in/4-out
POWER CONSUMPTION	15 W
EXTERNAL DIMENSIONS	7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
WEIGHT	(INCLUDING BATTERIES)1200 g

The Zoom F8n Pro is a top-of-the-line field recorder and mixer, featuring 32-bit float recording technology and 8 channels with up to 10 tracks. It records in BWF-compliant WAV format at a high resolution of up to 192kHz/32-bit float, with 8 discrete inputs and high quality mic preamps. It also offers accurate Time Code, multiple power supply options, and various features such as a high pass filter, phase invert, and mid-side decoder. The F8n Pro can also be used as a USB audio interface and com...

More...

With the F8n Pro, filmmakers and sound professionals can capture immersive and high-quality audio for their projects. It offers multiple outputs, flexible signal routing, and state-of-the-art timecode to keep tracks perfectly synced. The Zoom AutoMix feature automatically adjusts levels to reduce ambient sound, while the pre-record function ensures that no takes are missed. The F8n Pro also has expanded control options and various power supply options, making it a reliable and versatile tool for any professional filmmaker or sound engineer.
