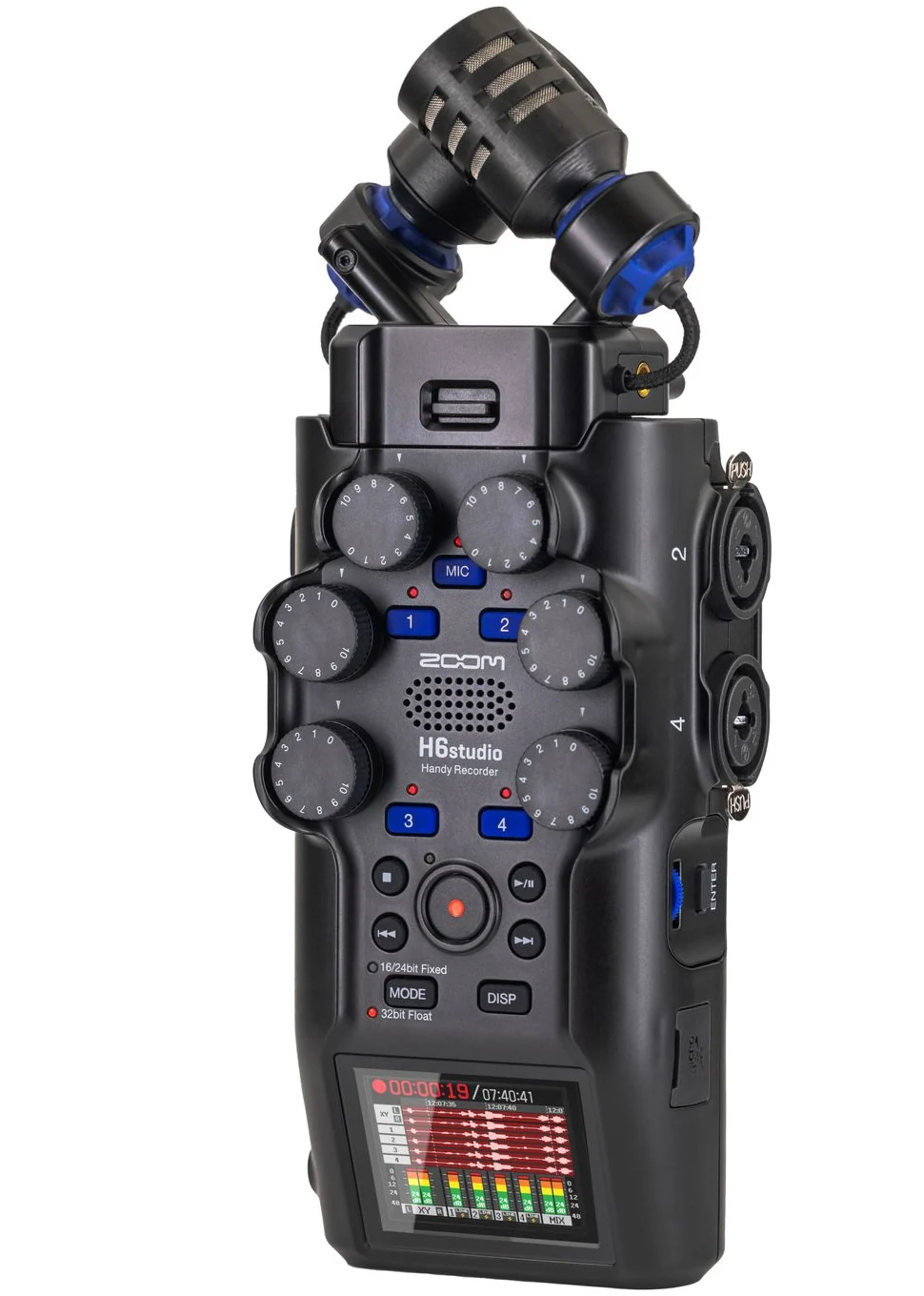

Zoom H6studio Handy Recorder
- Zoom TCA-1 Timecode Adapter
- SD Card
- Card Reader
- Sony ZX110b Headphones
- XY Mic Capsule
- 32-bit float and 16/24-bit formats each have their Advantages
- 32-bit float prevents clipping but requires post-production
- 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping
- The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production
- And with the dedicated format switch, you can adapt your workflow quickly
- The H6studio supports sampling rates from 44.1 to 192 kHz
- Capture up to 8 tracks* at once - 6 individual tracks plus a stereo mix
- *Up to 8 tracks (6 inputs + 2 stereo mixes) at 96kHZ
- *Up to 6 tracks (6 inputs) at 192kHZ
- The 19.4mm microphones capture audio with incredible frequency Response and 140 dB max SPL
- Their increased size captures recordings with unmatched depth and clarity
- The H6STUDIO features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN)
- With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range
- The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track
| INPUT AND OUTPUT CHANNELS | |
| Inputs | 1x Mic capsule |
| 4x MIC/LINE (mono) | |
| Outputs | 1x LINE OUT |
| 1x Headphone | |
| 1x Built-in speaker (mono) | |
| INPUTS | |
| XY mic (XYH-5s) | |
| 90º XY stereo format | |
| Pickup pattern | Unidirectional |
| Sensitivity | –41 dB/Pa at 1 kHz |
| Maximum sound pressure input | 140 dB SPL |
| MIC/LINE IN (XYH-5s) | |
| Connector | 1 stereo mini jack |
| Input gain | −∞ – +60 dB |
| Input impedance | 2 kΩ or more |
| Plug-in power | 2.5 V |
| MIC/LINE (mono) | |
| Connectors | 4 XLR/TRS combo jacks |
| (XLR：2 HOT, TRS：TIP HOT） | |
| Input gain | −∞ – +60 dB |
| Input impedance | MIC 3 kΩ or more |
| LINE 3 kΩ or more | |
| Maximum input level | MIC +4 dBu |
| LINE +24 dBu | |
| Phantom power | +48 V |
| Equivalent input noise | –127 dBu or less (IHF-A) at 150Ω input |
| OUTPUTS | |
| LINE OUT | |
| Connector | 1 stereo mini jack |
| Maximum output level | +1 dBu |
| Output impedance | 110 Ω or less |
| Headphone | |
| Connector | 1 stereo mini jack |
| Maximum output level | 20 ｍW + 20 ｍW（when 32 Ω load） |
| Output impedance | 10 Ω or less |
| Built-in speaker | |
| Type | 20 mm x 30 mm elliptical dynamic speaker |
| Effective maximum output | 250 mW |
| RECORDER | |
| Maximum simultaneous recording tracks | 8 |
| Maximum simultaneous playback tracks | 6 |
| Recording formats | WAV |
| 44.1/48/96/192 kHz, | |
| 16-bit/24-bit/32-bit float | |
| mono/stereo | |
| BWF and iXML formats supported | |
| Recording media | microSDHC memory cards |
| microSDXC memory cards | |
| DISPLAY | |
| 2.00" full-color LCD | 320 x 240 |
| USB | |
| Connector | USB Type-C |
| Use a USB cable that supports data transfer. | |
| Audio Interface | USB 2.0 High Speed |
| Input and output channels | 6 in / 2 out (Multi) |
| 2 in / 2 out (Stereo) | |
| Sampling frequencies | 44.1/48/96 kHz (audio interface only) |
| 44.1/48 kHz (audio interface + onboard recording) | |
| Bit depths | 24-bit, 32-bit float |
| File transfer | USB 2.0 High Speed |
| REMOTE | |
| Dedicated wireless adapter | ZOOM BTA-1 |
| POWER | |
| 4x AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A) |
| USB bus power is supported. | |
